] All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. ] Place the processor in the socket with extreme care, as the spring contacts of the socket are very delicate and must not be bent. If one or more spring contacts are bent do not insert the processor in any case as it may be damaged by doing so. The processor socket ist covered with a protective cap to protect the spring contacts In a warranty case the mainboard can only be taken back by Fujitsu Siemens Computers with the protective cap secured!Hold the processor between your thumb and index finger and insert it into the socket (b) so that the marking of the processor is aligned with the marking on the socket (a). Please note that, depending on the heat sink used, different heat sink mounts are required on the mainboard.

Depending on the configuration variant, you must pull a protective foil off the heat sink or coat the heat sink with heat conducting paste before fitting it. Secure the heat sink - depending on the model - with four screws or push it into the mounts. A current list of the memory modules recommended for this mainboard is available on the Internet at: www. DDR2-memory modules must meet the PC2-3200U, PC2-4200U or PC2-5300U specification. If you use more than one memory module, then make sure to distribute the memory modules over both memory channels.

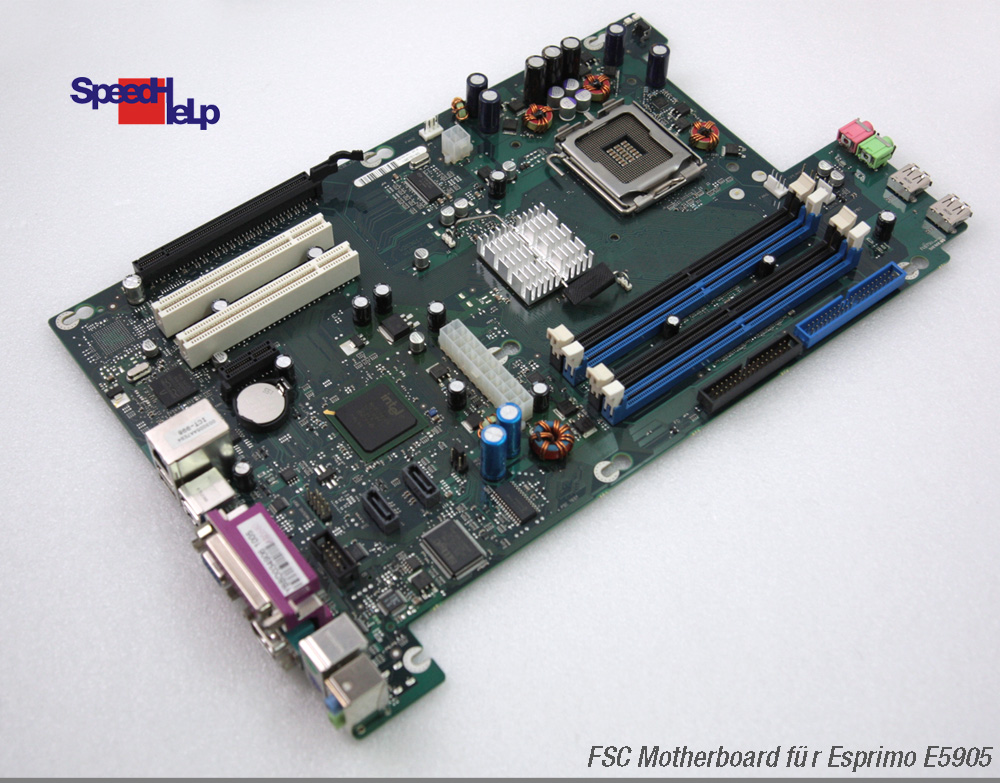

Fujitu-Siemens Esprimo E5905. FSC Esprimo E5905. Intel i945G chipset; Intel GMA 950 onboard vga adapter(128MB shared memory). Go to driver page >.

By doing this you use the performance advantages of the dual-channel mode. The maximum system performance is given when the same memory size is used in Channel A and Channel B. With a memory configuration of 4 Gbytes the visible and usable main memory can be reduced down to 3 Gbytes (depending on the system configuration). Number of inserted memory modules 2 3 X X X X X Should IRQ sharing be unavoidable, then all involved devices and their drivers must support IRQ sharing.

Which ISA IRQs are assigned to the PCI IRQ Lines is normally automatically specified by the BIOS (see 'BIOS Setup' description). Monofunctional expansions cards PCI/PCI Express expansion cards require a maximum of one interrupt, which is called the PCI interrupt INT A. ] BIOS update under DOS with bootable BIOS update floppy disk - brief description Download the update file from out website to your PC.
